The 1969 Honda Z50, better known by enthusiasts as “Monkey Bike,” has become an admired classic of motorcycle history. With its compact design and reliable performance, this bike has long been beloved. Key components that contribute to its functionality are its 4-wire headlight system and diagram; understanding it will assist with maintenance or restoration projects.
Decoding the 4-Wire Headlight System (1969 Honda Z50 Headlight Diagram).
The headlight assembly of the 1969 Honda Z50 features four primary wires, each designated with its own color and function: red, orange, blue and green.
- Green Wire (Ground): This grounding wire for the headlight circuit serves to ensure optimal electrical system stability and performance. When installing the Z50, ground connection typically occurs through its ignition switch which connects directly with its frame – though other methods could also work depending on installation preferences.
- White Wire (Low Beam): Connects directly to the low beam filament of the headlight bulb and provides illumination during standard riding conditions. It’s connected to a switch for switching between beam settings as needed by its rider.
- Blue Wire (High Beam): Connects directly to the high beam filament for enhanced visibility when activated; similar to its white wire counterpart, this wire interacts with a headlight switch for easier beam selection.
- Brown Wire (Power Supply): Provides power from the main harness to the headlight switch and is necessary for providing electricity to both high beam and low beam circuits.
Wiring Diagram and Connections

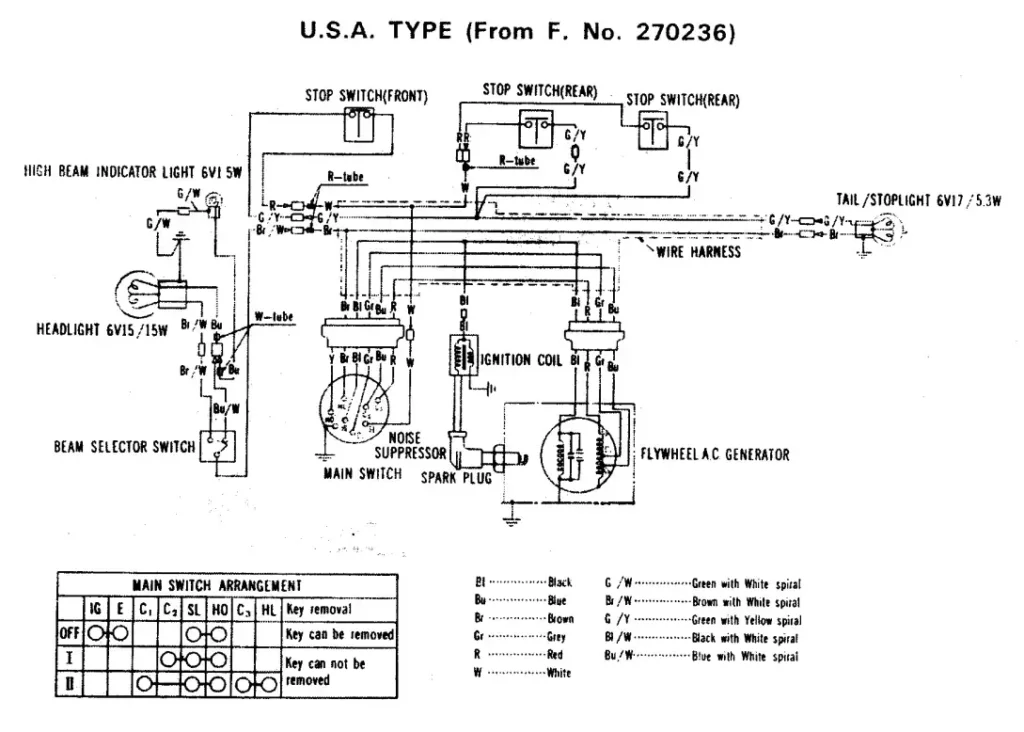

Fans who need visual assistance can turn to 4-Stroke.net’s wiring schematic diagram as an aid in accurate restorations and troubleshooting. This schematic gives insight into all connections and pathways of an electrical system for easy restorations and troubleshooting.
Common Grounding Challenges: An Update
An issue commonly faced when performing restoration is an absence of clear grounding points in replacement wiring harnesses. According to forums such as lilHonda.com, some harnesses don’t include dedicated ground wires for components like headlight and high beam indicator components. When this happens, eyelets attached to chassis should be used as custom ground connections, creating a reliable ground path.
Download 1969 honda z50 headlight diagram pdf 4 wireConclusion
Understanding the 4-wire headlight wiring of a 1969 Honda Z50 is critical to its iconic performance and can ensure enthusiasts keep their Monkey Bike both functional and true to its original design. By familiarizing oneself with its colors, functions, and potential grounding challenges, enthusiasts can ensure it remains both reliable and faithful to its original blueprint.
